Canadian Solar - North America
* 12 years enhanced product warranty on materials and workmanship * 30 years linear power output warranty According to the applicable Canadian Solar Limited Warranty Statement.

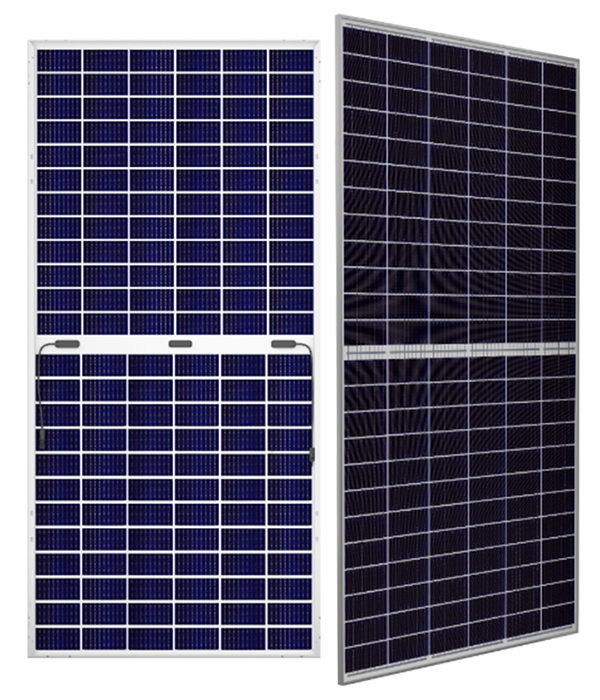

Bifacial module up to 440 W
· 144 dual cell + poly & mono PERC technology · Power range 390 - 440 W · Low power loss in cell connection
More energy than single facial module
· Up to 30% more energy from backside · Bifaciality is as high as 75%
Enhanced reliability
· Low NMOT: 41 ± 3 °C · LID + LeTID less than 2.0% · Lower hot spot temperature · Better shading tolerance
CELL
· 166 x 83 mm, larger cell size :
Increases the area exposed to light
Increasing module power and reducing BOS cost
GLASS
· 2.0 mm heat strengthened glass on both sides :
30 year module performance warranty

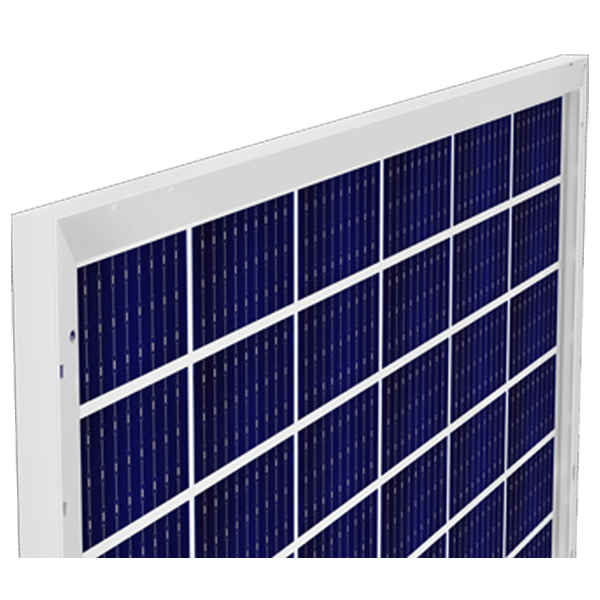

FRAME
· 30 mm anodized aluminium alloy:
Robust protection
· Reserved mounting holes:
Easy installation
· Less shading on back side:
More energy yield
JUNCTION BOX
· IP68 split junction boxes:
Better heat dissipation & higher safety
· Smaller size:
No shading on cells & more energy yield
CABLE
· Optimized cable length: Simplify wire management and, reduce energy loss in cable

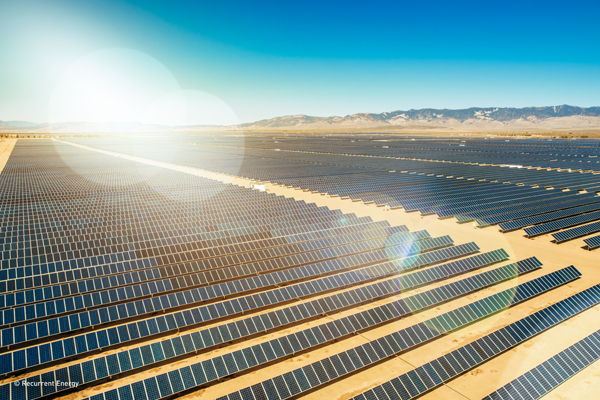

SUCCESSFUL PROJECTS
