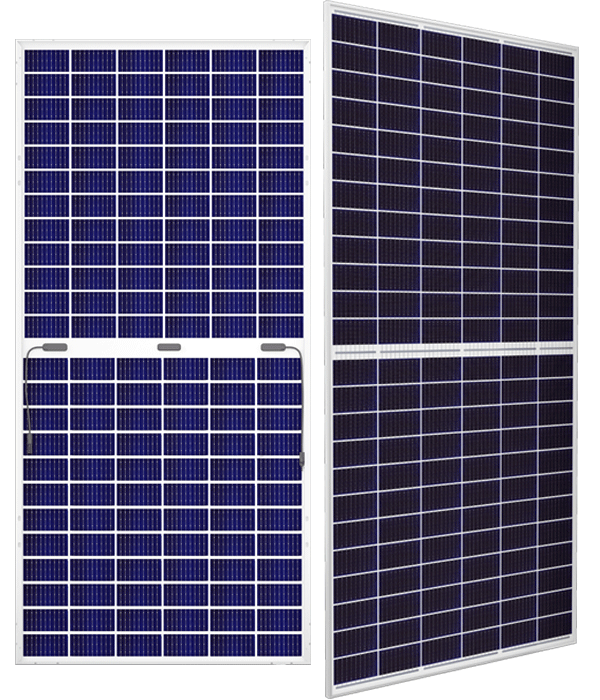

Bifacial Dual Cell PERC Module (Poly & Mono)

* 12 years enhanced product warranty on materials and workmanship * 30 years linear power output warranty According to the applicable Canadian Solar Limited Warranty Statement.

  • Bifacial module with high efficiency dual cell technology

    · 144 / 120 dual cell + poly & mono PERC technology · Power range 290 ~ 400 W · Low power loss in cell connection

  • More energy than single facial module

    · Up to 30% more energy from backside · Bifaciality is as high as 75%

  • Enhanced reliability

    · Low NMOT: 41 ± 3 °C · LID + LeTID less than 2.0% · Lower hot spot temperature · Better shading tolerance

  • BiKu


    · High efficiency bifacial poly & mono PERC dual cells:

    Increases module power and reduces BOS cost

    Minimises micro-cracks



    · 2 mm heat strengthened glass on double sides:

    30 years module performance warranty



    · 30 mm anodized aluminium alloy:

    Robust protection

    · Reserved mounting holes:

    Easy installation

    · Less shading on back side:

    greater energy yield

  • BiKu


    · IP68 split junction boxes:

    Better heat dissipation & higher safety

    · Smaller size:

    No shading on cells & greater energy yield



    · Optimized cable length:

    Simplified wire fix & reduced energy loss in cable


    • System Capacity / Type100 MW, Utility Solar Plant
    • Module TypeBifacial BiKu CS3U-PB-FG
    • LocationWuhai city, Inner Mongolia, China
    • InstalledDecember, 2018
    • Canadian Solar's RoleModule Supply & EPC
    • More projects
    • System Capacity / Type150 MW / Utility Solar Plant
    • Module TypeBifacial BiKu CS3U-PB-FG & CS6K-PB-FG
    • LocationShizuishan, Ningxia, China
    • InstalledDecember, 2018
    • Canadian Solar's RoleModule Supply & EPC
    • More projects
